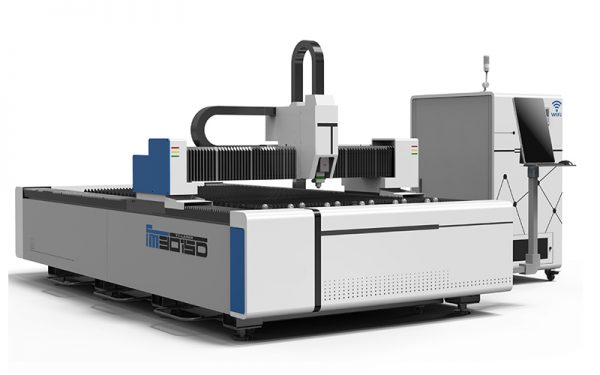

Single Table Fiber Laser Cutting Machine

Single Table Fiber Laser Cutting Machine

The Fiber Laser Cutting Machine Can Choose The Cutting Area:
  • 3000mm*1500mm
  • 4000mm*2000mm
  • 6000mm*2000mm
  • 6000mm*2500mm
  • 8000mm*2500mm
Laser Power: 1kw-12kw
  • The laser beam is connected to the cutting head via an optical cable without any loss, and you can get excellent cutting accuracy and quality.
  • Low power consumption, easy to use, and environmentally friendly.
  • The main body of the structure is sturdy and high in strength.

Technical Parameter
Laser power Max. linkage speed Max. Acceleration
1kw-6kw 140m/min 1.5G
Positioning accuracy Repositioning accuracy Laser source
0.05mm 0.03mm MAX / IPG Raycus / GW
Laser head System identification file format Working area
WSX / Raytools / Hans G file、DXF、PLT、AI Customizable
Standard Configuration

Auxiliary feeding mechanism

It can assist workers to complete the loading and unloading of raw materials, which greatly increases work efficiency.

Raytools automatic focusing head

It can change its laser spot to proper size and shape according to cutting materials and thickness. The software automatically adjusts the focusing lens to realize automatic drilling and cutting of different plates.

Cypcut Cnc System

Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance

IPG Fiber Lasers Souce

offer the best value, most stability and the highest productivity. They are built to last with their solid state monolithic design with 20x less degradation than competitors.

Japanese Yaskawa Servo Motor and Drivers

1. Low noise and long life 2. Efficient and energy saving  3. Wide range of uses 4. Tamagawa encoder 5. High Presicion

Cast Aluminum/Welded Beams

Made of High-Quality Materials. Good Dynamic performance. Smooth Movement. Good Toughness. Corrosion Resistance. Oxidation Resistance.

Equipment Parameters
Model BKJ-F-3015 BKJ-F-4020 BKJ-F-6020 BKJ-F-6025 BKJ-F-8025
Working area(mm) 3000*1500 4000*2000 6100*2000 6100*2500 8100*2500
Power 1KW-6KW
Table load bearing 900kg 1600kg 2400kg 2950kg 6000kg
Machine overall dimension 9350*2300*2000 10200*3100*2000 15100*3100*2000 15300*3600*2200 19200*3600*2200
Machine weight 3600kg 5600kg 7500kg 8500kg 9000kg
Position gaccuracy 0.03mm                                                                        0.05mm
Repositioning accuracy 0.02mm                                                                        0.03mm
Product Features

Intelligent buzzer alarm system

When the equipment is abnormal, the system will start a full-abnormal alarm and push it to the interface through the control center to detect equipment abnormalities in advance, reduce hidden dangers, and double the efficiency of troubleshooting equipment.

Auxiliary gas low-pressure alarm function

It provides real-time pressure detection, pushes abnormal information when the pressure value is lower than the best cutting effect and accuracy, to ensure the cutting effect, cutting accuracy, and the timeliness of gas replacement.

Automatic lubrication system

The automatic lubrication system provides regular and quantitative lubricating oil for the equipment to ensure the normal high-speed operation of the equipment and has functions such as abnormal alarm and liquid level alarm. The system greatly improves the cutting efficiency and effectively prolongs the service life of the transmission mechanism.

New generation of safety follow-up module

The laser head keeps a distance from the workpiece during the cutting process to reduce the risk of collision and will stop cutting when it may collide with the board. The safety follows module reduces the accident rate.

Hanli Water Chillier

Features of Hanli HL series fiber lase chillers:

1.Specially designed for fiber laser equipments, compatible with various brand lasers

2.Full range of environmentally friendly refrigerants, worry-free export

3.Laboratory inspection, quality assurance

4.Stable and reliable performance, low failure rate, energy saving and power saving

Screw Air Compressor

Control: PLC,Driven: direct,Cooling: by air
Electric motor: Permanent magnet variable speed type, 20hp 15KW 380v/50hz/3ph IP65 oil cooling type. Invertor: Inovance
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A),Air outlet size: G3/4” Air tank: 500L,Air dryer capacity: 2.35 m3/min
Air filter: 3 pcs(after filtering, particle content 0.01 micron, oil content 0.001mg/m3)

Voltage Stabilizer

TND/SVC series fully automatically voltage regulator consist of contact autotransforme r, servo motor, automatic control circuit etc.

  • When grid voltage instability,automatically sampling control circuit sends a signal to drive servo motor
  • Waveform distortionless, reliable performance,long-term operation
  • Over voltage, undervoltage protected function
Optional Configuration

Add pipe cutting function

According to customer requirements, we can add a pipe cutting function on the basis of cutting metal plates, so that one machine can complete the cutting of metal plates and pipes at the same time.
Automatic electric chuck, claw DC motor drive, and clamping motor current is sensitive, adjustable, and stable.
Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life, and high work reliability.



Super fast exchange platform

Cylinder lock, chain-type transmission, let the machine running more stable. Table roller adopts eccentric wheel structure to ensure the height of each wheel is consistent and play the supporting role. Platform exchange time super fast, finish in 10S, high efficiency.

The newly designed parallel exchange locking system has a simple and reliable structure, which makes the processing efficiency high and the stability is good. The dual platform can further improve the production efficiency.


Automatic Loading And Unloading System

The laser cutting loading and unloading system can automatically pick up various sheets cut on the laser worktable. Small workpieces will be placed in a container and will place larger workpieces on a pallet or transport truck for sorting. And a large number of workpieces can be sorted through various controllable vacuum suction cups.

Cutting Sample

The CNC laser cutting machine can cut all types of metals, from mild steel to stainless steel as well as non-ferrous metals. But some highly reflective metals, such as aluminum and copper, are more difficult to cut. The maximum thickness of the metal that the laser can cut is determined by the laser source. In theory, the greater the laser power, the greater the thickness that can be cut. In addition, the professional knowledge of the machine operator will also affect the thickness of the laser cutting.

Application Industry

Fiber laser cutting machines are widely used in the manufacturing of advertising signs, kitchenware, sheet metal processing, metal parts, chassis and rack processing, cabinet processing, metal crafts, elevator panel cutting, hardware, auto parts, and electronic parts, nameplates, etc
