Desktop CO2 Laser Marking Machine

Desktop CO2 Laser Marking Machine

Advantages of CO2 Laser Engravers:

  • Using RF metal tubes, the CO2-laser source can endure more than 20,000 hours of service life.
  • The durable and robust cabinet design can adapt to harsh industrial environments.
  • We can tweak designs to meet a customer’s specific marking needs.
  • We can supply smoke purifiers to solve the problem of large amounts of smoke and dust.
  • The software in the laser systems is the best in the market and provides the finest results.
  • The price for our CO2 laser marker is even more affordable than other, low-performing Chinese machines.
Technical Parameter
Laser type Laser wavelength Average output power
Fiber Laser 1064nm 20-100W
Optical isolator Modulation frequency range Linear speed
Yes 20KHz- 80KHz 70000 mm/s
Repeat positioning accuracy Marking range Laser source
0.003mm 100*100mm – 300*300mm Raycus
Standard Configuration

High-quality Metal Tube

Co2 laser markers take high-quality metal laser tubes as the laser source. By 2D fast-speed scanning mirrors swinging at the scheduled angles under the control of the computer, the laser focus on the surface of the workpiece by focus lens to form images and realize marking and graph processing.

Digital scanning laser head

The digital fast-speed scanning laser head can be the graph in the shortest time to finish the fine marking process.

Industrial computer

Industrial computer adopted which is equipped 8GB RAM SSD WIN10 system 19″ LCD for running our laser machine more smoothly

Laser safety labels

Laser safety signs are used in areas that need to control the laser and can guide relevant personnel to instruct the safe use of the laser system.

Well-known brand switching power supply

Medical level, built-in active PFC. Medical safety approved (MOOP level). High efficiency, no-load power consumption less than 0.5W-0.8W.

Laser emission indicator

The laser emission indicator provides a visible signal during the emission of accessible laser radiation in excess of the accessible emission limits of Class

Safety interlock

Safety interlocks are designed to prevent customers’ access to laser and collateral radiation upon removal or displacement of such portion of the protective housing.

Red dot pointer

Convenient to adjust the focal length, preview the working area, graphic size, graphic outline, and visual marking path.

Equipment Parameters
Laser Power 20W 30W 50W 100W
Working Area 70X70mm / 110X110mm / 150X150mm
laser Wavelength 1064nm
Frequency 1KHz~400KHz
Graphic Format Supported bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Laser Module Life >100,000 hours
Power Supply 220V±10% 50HZ or 110V±10% 60HZ
Marking Depth adjustable according to materials
Scanning Speed 0~7000mm/s
Product Features

Good marking effect

The laser marking machine can provide the best marking effect. Especially good at marking the smallest characters.

High accuracy

The precision of the metal laser marking machine can reach 0.001mm, while the diode is only 0.01mm.


The fiber laser marking machine has a lifespan of 100,000 hours and can be used for more than 30 years.

No consumables

The metal laser marking machine can be used for metal marking for 8-10 years without any consumables.

Low maintenance cost

Built-in fiber laser head, almost maintenance-free and absolutely reliable. Laser markers use very low energy consumption and incur no consumables, spare parts, or laser maintenance costs.

High-speed laser marking

Fiber laser marking machines have been developed to mark a large number of small and medium parts. Laser marking machines are capable of marking pens, USB sticks, or nameplates in seconds.

Easy to use

The pre-installed fiber laser marker software is like a printer driver, it works with all graphics, CAD, and label printing software, no need to import or convert, just use a simple print command.

Strong adaptability to the environment

The fiber laser marking machine adopts a fully enclosed design and can work continuously and normally in a variety of environments.

Standard Configuration

Rotary marking accessories

The upper and lower double exchange worktable design can be selected, the inverter is responsible for controlling the exchanging motor, and the machine can complete the worktable exchange within 13s at the fastest.

The marking range can be customized

The laser marking area has four options: 70mmx70mm, 110mmx110mm, 150mmx150mm, and 300mmx300mm, and you can choose different scanning lenses for different laser marking work areas.

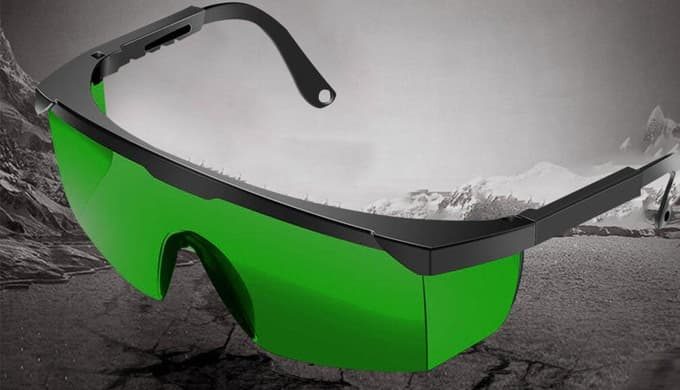

Laser goggles

Laser protective glasses are used to reduce the intensity of potentially harmful lasers to the safe range. They can provide exponential attenuation of optical density for different laser wavelengths, and at the same time allow enough visible light to pass through for easy observation and use.

Smoke purification system

When the laser marks different materials, it will produce a lot of smoke, dust, and pungent stench. The smoke purification system can carry out an instant purification system of severe pollutants. The purified clean air can be directly discharged into the room without passing through an external discharge pipe.

X/Y adjustable table

Glorious Laser offers a variety of pre-assembled X/Y adjustable tables to meet customer requirements for indexing, scanning, fixing, positioning and measuring. These tables are designed based on our many years of experience in the laser industry and are available in manual and motorized configurations.

Marking Sample

The CO2-laser marking machine also known as the CO2-laser engraver is used mostly for organic materials such as wood engraving, paper cutting, acrylic bodies, and leather marking. However, the machine can also engrave on non-metal inorganic materials, such as polymers, glass, leather, paper, acrylic, and plastics.

Application Industry

Fiber laser cutting machines are widely used in the manufacturing of advertising signs, kitchenware, sheet metal processing, metal parts, chassis and rack processing, cabinet processing, metal crafts, elevator panel cutting, hardware, auto parts, and electronic parts, nameplates, etc


Leave us a message

At baokun, we regard every request from our customers as first priority. Our team is always ready to give technical support for any customer at any time. All of our machines boast a warranty period of 3 years and lifetime of free technical consultation.
