Cleaning plastic injection molds, rubber molds and more.
| MACHINE INFORMATION: | ||
| Product Name | Backpack Handheld Pulse Laser Cleaning Machine | |
| Model | BKJ–C-50W | BKJ–C-100W |
| Max average power(W) | 50W | 100W |
| Power Adjustment Range | 10%-100% | 10%-100% |
| Output central wavelength(nm) | 1064 | 1064 |
| Bandwidth(nm) | 5 | 5 |
| Max pulse energy(mJ) | 1.1 | 1.5 |
| Pulse repetition rate(kHz) | 45-170 | 20-200 |
| Pulse width(ns) | 100±10@45kHz | 180±10@65kHz |
| Fiber Length | 3M Standard | 3M Standard |
| Beam quality(M2) | 1.6 | 1.6 |
| Scanning Width(mm) | 150 | 150 |
| System power sypply requirement | 220V | 220V |
| Power Consumption(W) | 350 | 550 |
| Operating temperature(℃) | 10-40 | 10-40 |
| Storage temperature(℃) | -10-60 | -10-60 |
| Relative humidity(%) | ＜80 | ＜80 |
| Support Languages | 12 kinds languages | 12 kinds languages |
| System dimensions(L*W*H,mm) | 318* 285*127 | 359.5*380*152 |
| Total Weight（kg） | 7.8 | 10.5 |
| Laser head weight(Kg) | 0.65 | 0.65 |
| Laser head type | 2D scanning | 2D scanning |
| Laser head focus length(mm) | 160, 254 optional | 160, 254 optional |
| Laser head operating mode | Manual/Auto | Manual/Auto |
| Laser safety classification | Class 4 | Class 4 |
| Warranty | 3 years | 3 years |
Packaging can be customized according to customer needs.
2D Laser cleaning head
Laser Source
Wearing parts — protective lens
Tips: Wipe clean before and after use to prolong the service life.
Control system
The software is easy to operate, and the pre-stored parameters can be directly selected, and the process is safe.
The weight is only 10.5kg/7.8kg, and it can be moved with one hand.

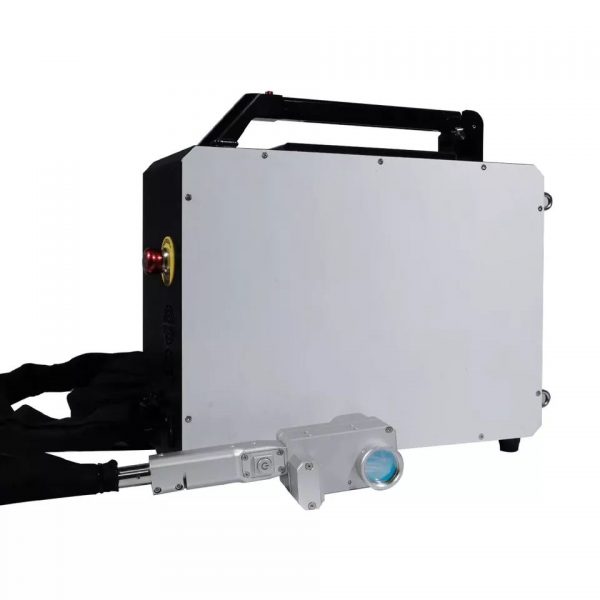

The Backpack portable Laser Cleaning machine is light and easy to carry, making it perfect for use at home or in the office. The simple design and powerful cleaning ability eliminate rust and dust from virtually any metal surface in just seconds, while your metal base stays protected with a built-in safety feature.

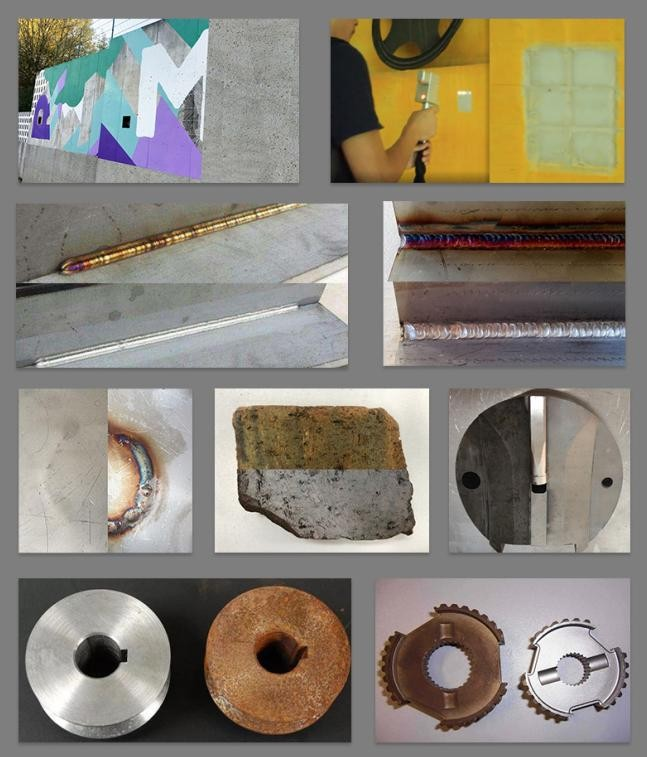

Ideal for cleaning graffiti, paint, rust, coatings, oxides and more.
Quick cleaning of rust, paint, oil and oxide on metal + non-metalsurfaces
Coating + Graffiti +Ceramics + Marble + Weld Seam cleaning + Woodcleaning
Car paint removal, parts cleaning andpolishing
Free customization of differentcolor
Free customization of different styles +models
Design and add your desired LOGO
Stainless steel passivated, chrome plated or anodized finish
Remove glue andadhesive
Cleaning plastic injection molds, rubber molds and more.
Button control, easy to operate
The scanning width is 150mm, and the cleaning efficiency is
8 cleaning modes, which can be flexibly used in different cleaning
The whole laser head weighs about 650g, which is ergonomically designed and can be held for along time.
The standard length of the optical fiber cable is 3m, which supports customization and can be extended.
The best MAX brand laser source in China, highly integrated design, efficient and clean, easy tooperate, environmentally friendly and pollution-free, suitable for a variety of
scenarios.
Support 12 languages including Chinese, English, Korean, Russian, Spanish and more
Supports 8 cleaning modes: straight line, spiral, circle, rectangle, rectangle throw and circular throw,
Cleaning plastic injection molds, rubber molds and more.
Cleaning plastic injection molds, rubber molds and more.
At baokun, we regard every request from our customers as first priority. Our team is always ready to give technical support for any customer at any time. All of our machines boast a warranty period of 3 years and lifetime of free technical consultation.
